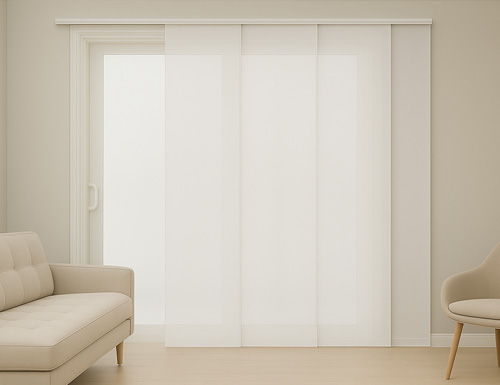

Transform your large windows or sliding glass doors with our Premium Light Filtering Sliding Panels.
Made from the same high-quality fabrics as our popular roller shades, these panels bring a sleek, modern look while offering soft light control and privacy.
Perfect for patio doors, wide windows, or room dividers, the clean, contemporary design glides smoothly and stacks neatly to one side for an open view.
Key Features
- Light Filtering Fabric – Gently diffuses sunlight for natural illumination while maintaining daytime privacy.
- Coordinated with Roller Shades – Match your roller shades with the same premium fabrics and colors for a cohesive look throughout your home.
- Custom Fit Options – Panels are tailored to your exact window or door size for a polished, made-to-order finish.
- Effortless Operation – Smooth-gliding track system makes opening and closing easy and quiet.
- Optional Motorization – Upgrade to a motorized system with a built-in rechargeable battery for wire-free convenience.
- Durable Headrail System – Crafted with precision for long-lasting performance and clean, modern aesthetics.
- Flexible Stacking – Choose left, right, or split stack to best suit your space and window layout.
Perfect For
- Sliding glass doors and patio doors
- Wide windows or wall-to-wall applications
- Modern, minimalist, and contemporary interiors
- Matching roller shades for a unified look
Looking for more styles? See our full selection of
affordable Panel Track Blinds.
Product Details
Light Control
Light Filtering
Measure & Install
How To Measure
How To Install
Professional
Measuring & Installation
General Specifications
Width
48" - 192"
Height
24" - 120"
Headrail Dimension
1/2" x 4"
Mounting Depths
Top Mount
48"- 84" width(3 Channels)
Minimum = 1 5/8", Flush = 2 1/8"
84 1/4"- 120" width(4 Channels)
Minimum = 1 7/8", Flush = 2 5/8"
120 1/4"- 192" width(5 Channels)
Minimum = 2", Flush = 3 3/8"
Face Mount
48"- 84" width(3 Channels)
Minimum = 2", Flush = 2 3/8"
84 1/4"- 120" width(4 Channels)
Minimum = 2", Flush = 2 1/8"
120 1/4"- 192" width(5 Channels)
Minimum = 2", Flush = 3 5/8"
Panel Widths
Sliding panles are ordered slighly wider than required for a 2 1/2" panel overlap. To calculate the approximate width use the formula below:
Calculate number of gaps:
g = number of panels - 1
example: 4 (panels) - 1 = 3 gaps
Calculate total gap width:
gw = g * 2 1/2"
example: 3 gaps * 2 1/2" = 7 1/2"
Calculate total width:
tw = ordered width + gw
example: 96" (ordered width) + 7 1/2" = 103 1/2"
Calculate panel width:
pw = tw / number of panels
example: 103 1/2" / 4 (panels) = 25 7/8" approximate panel width
Calculate number of gaps:
g = number of panels - 1
example: 4 (panels) - 1 = 3 gaps
Calculate total gap width:
gw = g * 2 1/2"
example: 3 gaps * 2 1/2" = 7 1/2"
Calculate total width:
tw = ordered width + gw
example: 96" (ordered width) + 7 1/2" = 103 1/2"
Calculate panel width:
pw = tw / number of panels
example: 103 1/2" / 4 (panels) = 25 7/8" approximate panel width
Panel Configurations
48"- 84" width
One-Way, 3 Panels, 3 Channel Track
Center(split), 4 Panels, 2 or 3 Channel Track
Center(split), 4 Panels, 2 or 3 Channel Track
84 1/4"- 120" width
One-Way, 4 Panels, 4 Channel Track
Center(split), 4 Panels, 2 or 3 Channel Track
Center(split), 4 Panels, 2 or 3 Channel Track
120 1/4"- 144" width
One-Way, 5 Panels, 5 Channel Track
Center(split), 6 Panels, 3 Channel Track
Center(split), 6 Panels, 3 Channel Track
144 1/4"- 192" width
One-Way, 5 Panels, 5 Channel Track
Center(split), 8 Panels, 4 Channel Track
Center(split), 8 Panels, 4 Channel Track
Track Dimensions
The distance from the top of the track to the top of the panels is 1 7/8". The factory will take account of this distance when calculating the panel height.
2 Channels
1 1/2"
3 Channels
2"
4 Channels
2 5/8"
5 Channels
3 1/4"
Box Valance
Complete the look of your panel track blinds with a fabric-wrapped box valance designed to conceal the headrail at the top. It adds a tailored finish, softens the hardware appearance, and creates a more cohesive, built-in style in any room.
Guaranteed to Fit
Let us take the worry out of measuring. Upgrade with our Guaranteed to Fit protection. If your blind doesn't fit we will remake it for you.
If you make a mistake, we've got you covered. learn more
If you make a mistake, we've got you covered. learn more
Free Features
Stack Side
Specify the location of where the vanes gather when the blinds are drawn open.
